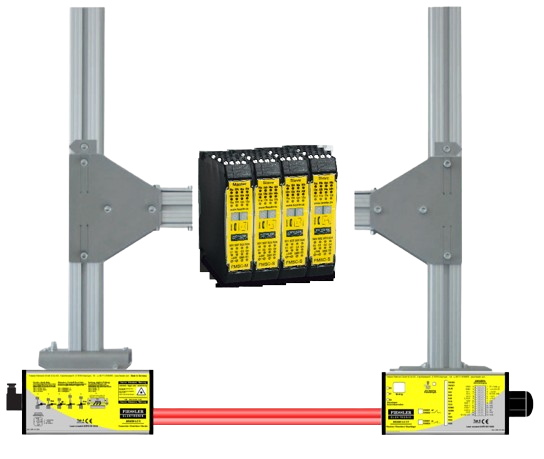

Laser safety system

CP Laser safety system for pressbrake offer a high level of efficiency and ease of use whilst maintaining the highest level of operator safety and protection.

Overrun distance is measured on each startup and throughout operation to ensure the machines stopping distance is maintained.

Mute speed is monitored for 10mm per second or less.

Double press pedal feature allows simple muting of the laser when folding boxes or trays which obstructs the laser guard.

The laser guard has intuitive LED’s for setup and alignment.

Automatic lasers

• Fully automatic height setting

• Self determines punch height

• 24VDC motors with integrated driver

• Lead screw driven

• Comes as a bolt on kit to existing brackets

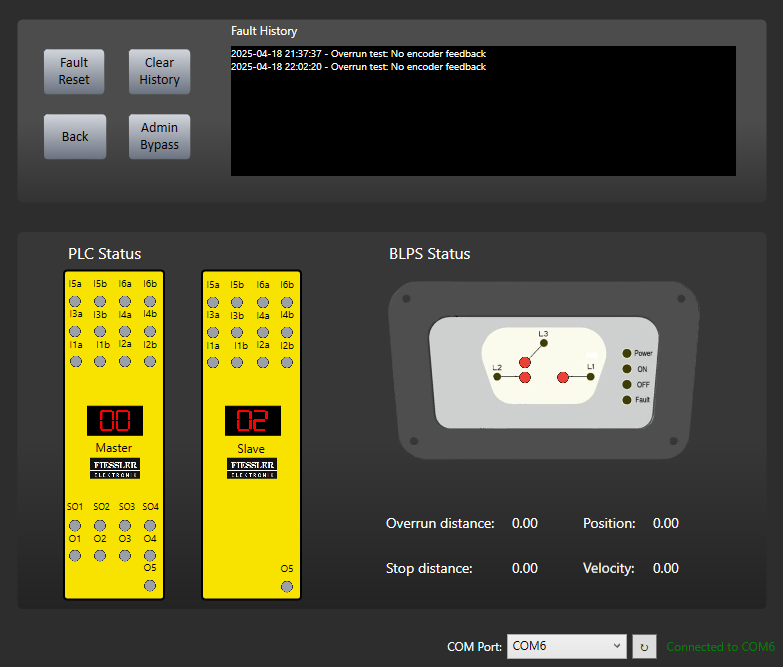

Software application

• Monitoring and fault history application available when combined with our iCON CNC controller.

• Windows based application
